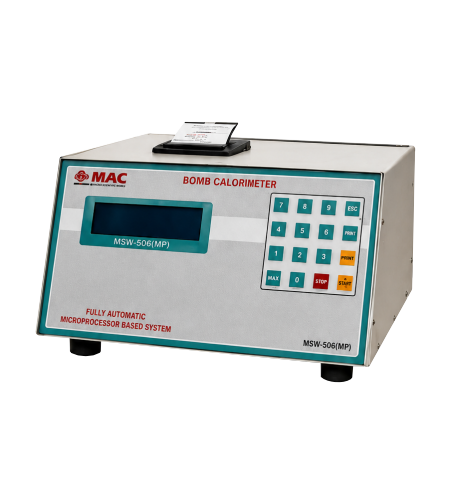

BOMB CALORIMETER Semi-Automatic Digital (µProcessor Controller) MSW-506 (MP)

This is a small description

Download Brochure
Enquire Now

INTRODUCTION

  • For determination of heat combustion of organic matter and calorific value and sulphur content of coal, solid and liquid fuels.
  • The Bomb has a capacity of 300ml approximately.
  • The bomb is provided with a high-pressure Schrader valve, which opens and allows filling of bomb, by oxygen because of oxygen pressure from the cylinder.
  • Each bomb is tested as per the requirement of Institute of petroleum (IP 12/63T).

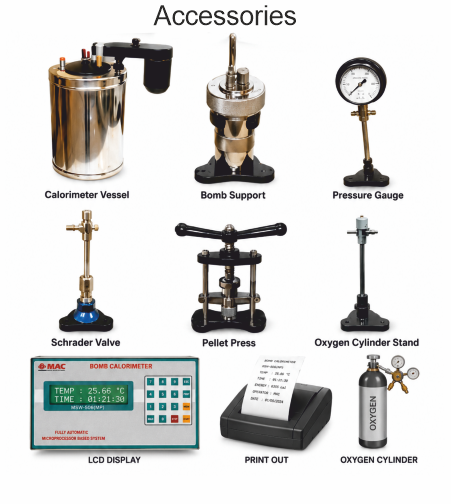

  • Supplied with Bomb Calorimeter Vessel with Bomb Support, Water Jacket, and Combined Lid for Calorimeter Vessel.
  • Supplied with water Jacket, Stirrer, Connecting leads, connecting tube to connect bomb and pressure gauge.
  • Connecting tube with fine adjustment valve to connect pressure gauge and oxygen cylinder.
  • With pressure gauge on stand, spanner for oxygen tube connection, ignition wire (2 meters) Nichrome.
  • With Cotton Reel, stand for Bomb Lid, Hook for lifting Bomb, Stainless Steel Crucible.
  • With Gelatine Capsules, Gas Release Valve, Jacket Thermometer.
  • With Bomb Firing Unit and Pellet Press.

DIGITAL FEATURES

  • State of art technology microcontroller based for measurement of temperature to calculate the calorific value experiments in bomb calorimeter.
  • JUMBO size 16 x 2 characters LCD display with backlight.
  • Temperature scanning resolution of 0.01⁰C.
  • Timer control through RTC(Real Time Clock) which makes it highly accurate.
  • Thermal printer interface for printing the final result.
  • Thermal printer Printout Report Format for SAMPLE TEST
  • COMPANY NAME
  • TYPE OF TEST :- SAMPLE TEST
  • MAX.TEMPERATURE RISE
  • MASS OF TABLET
  • WATER EQUIVALENT
  • FINAL CALCULATED CALORIFIC VALUE
  • DATE & TIME OF TEST
  • Thermal printer Printout Report Format for Water Equivalent Test
  • COMPANY NAME
  • TYPE OF TEST :- WATER EQUIVALENT TEST
  • MAX.TEMPERATURE RISE
  • MASS OF TABLET
  • BENZOIC ACID CALORIFIC VALUE
  • FINAL CALCULATED WATER EQUIVALENT
  • DATE & TIME OF TEST
  • 16 soft-touch Keypad for Menu driven settings of different parameters.
  • Automatic detection of temperature rise & fall.
  • Automatic measurement and mathematical calculation of the calorific value/Water Equivalent; which eliminates the requirement of operator to be continuously present to note the maximum temperature rise & to do the calculations manually.
  • Weight of tablet settable through keypad by user.
  • Water equivalent settable through keypad by user.
  • Automatic calculation for Sample Test or Water Equivalent Test from maximum temperature rise value.
  • Full test report printout with date and time & company name.
  • Automatic alarm on Firing as well as after the test completes.
  • Sensor open detection.
  • Fuse wire open detection.
  • No paper or printer door open detection.
  • User friendly system handling messages on LCD
  • Type of test selectable
Technical Specifications & Ordering Informations
ModelControl & DisplayCapacity
#BC-506 (MP)Semi-Automatic Digital (µProcessor Controller)300 ml

Options

  • Oxygen Cylinder for Capacity 10 ltrs.
